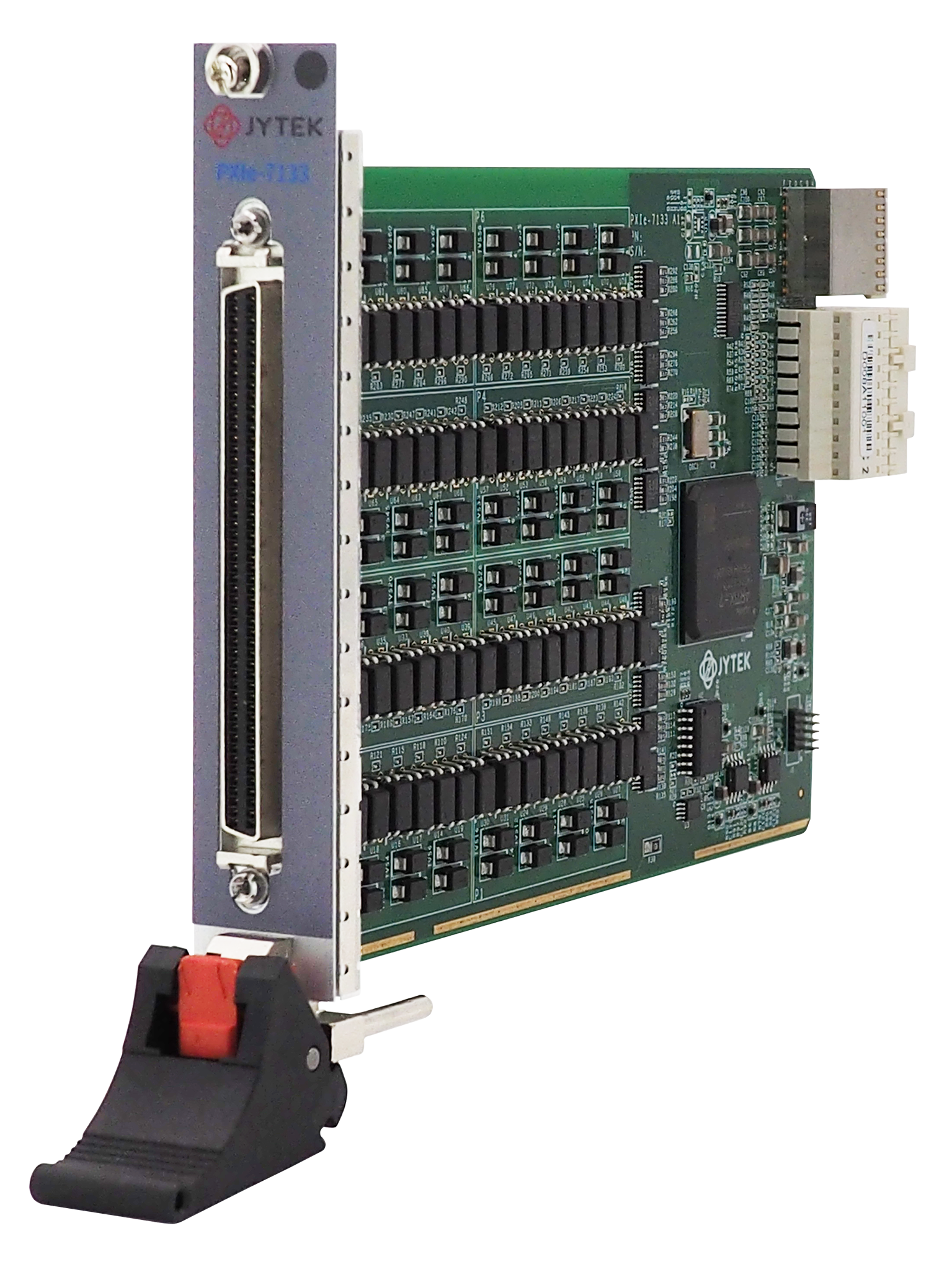

PXIe-7133（PN : JY8628450-01） |  64-Channel, ±60 VDC, 64 Sink/Source Inputs, Bank-Isolated PXIe Digital I/O Module

配件

ACL-1020100-1  |  1M 100pin SCSI twisted pair cable

ACL-1020100-2  |  2M 100pin SCSI twisted pair cable

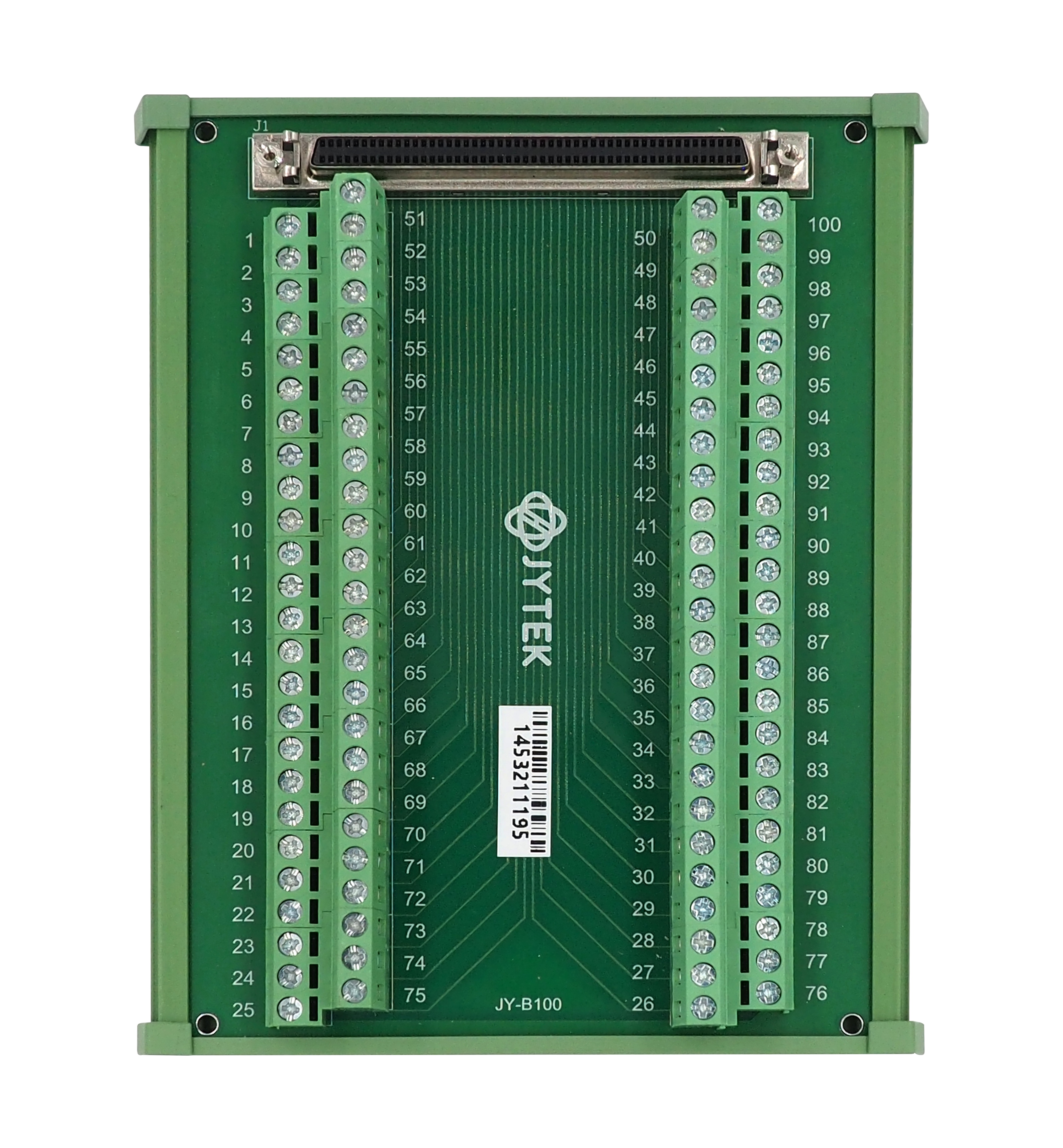

DIN-100-1   |  100-Pin SCSI Terminal block

Key Features

• DI：

             ※ 64 channels DI, 0~±60 V DC

             ※ 32 bits Resolution

             ※ Support Sourcing and Sinking input mode

             ※ Input Voltage:

                  logic H:±2~±60 V

                logic L:0~±1 V

•  Counter：

             ※ High operating voltage counter up to 50 V

             ※ Up to 100 MHz internal clock rate

             ※ Counter Functions：Edge counting / Frequency measurement / Period measurement / Two-Edge separation / Quadrature/(x1/x2/x4) encoder / Two-Pulse encoder

             ※ Dynamic reconfigurable counter output

•  Complies with IEC 61131-2 standard

‍

Introduction

JY-7133 series modules are multi-function isolated digital I/O module, which can provide 64 channels of DI (64 Sinking/Sourcing Inputs, Bank-Isolated) or 8 channels of counter, supporting counting, frequency measurement, encoder and other functions. Industrial DIO modules, like the JY-7133 series, are ideal for motor, valve control and automation control.
