国产兆芯KX-6640A处理器高性能PXI Express控制器
主要特点
兆芯KX-6640A处理器（4核心，4线程，2.6 GHz）
内存：最高支持32 GB双通道DDR4内存，速率为2666 MT/s（非ECC内存）
系统吞吐量：通过PCI Express 3.0总线，最大系统吞吐量可达8 GB/s
PXI Express配置：支持四个x4或两个x8的PXI Express配置
集成I/O接口
◇ 2个USB 3.2 Gen1端口（5 Gbps）
◇ 4个USB 2.0端口
◇ 1个以太网端口（1 GbE）
◇ 1个RS-232端口
◇ 先进的PXI触发功能的触发I/O
操作系统
◇ Windows 10 Enterprise LTSC 64-bit
◇ Linux 64-bit
产品介绍

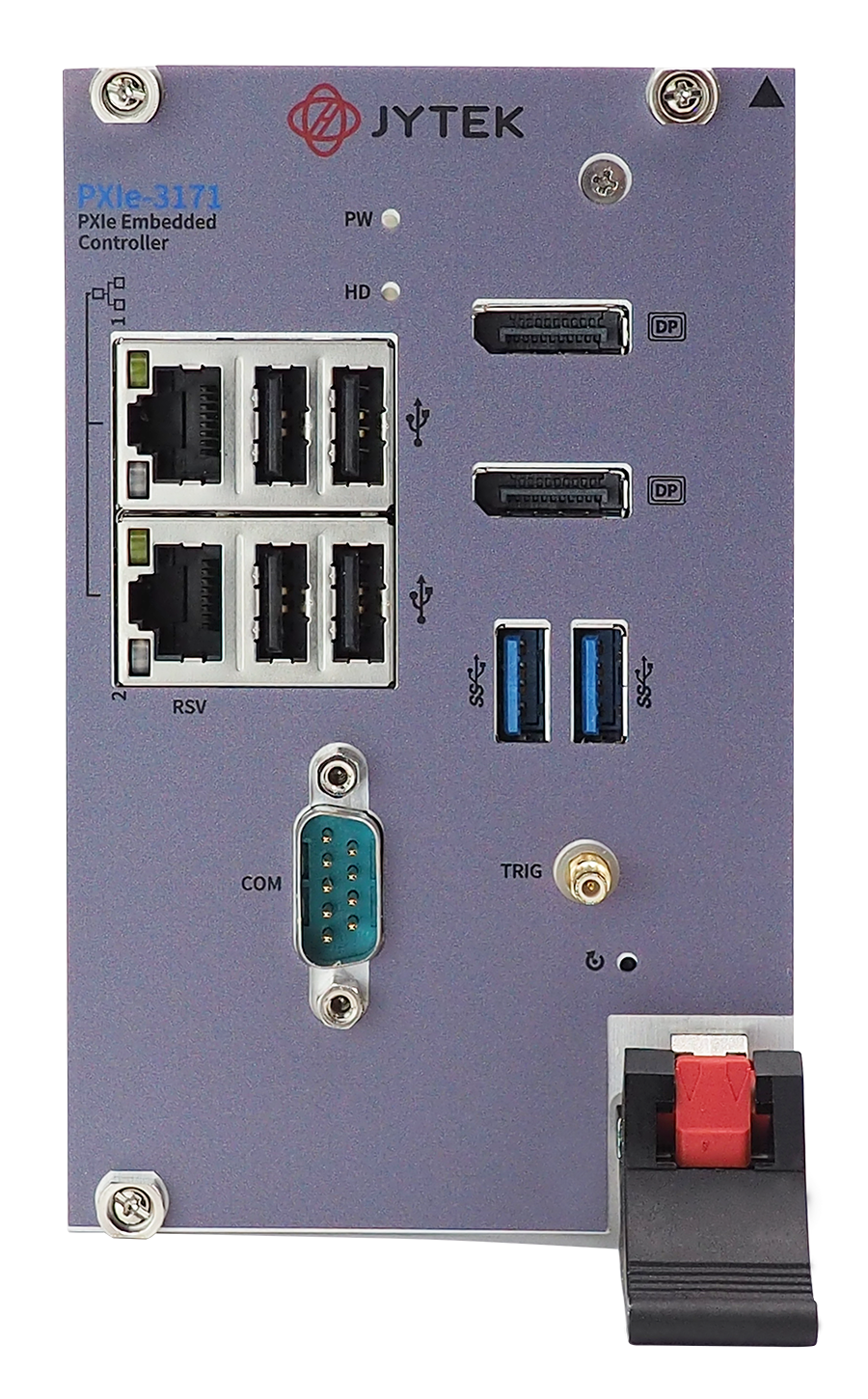

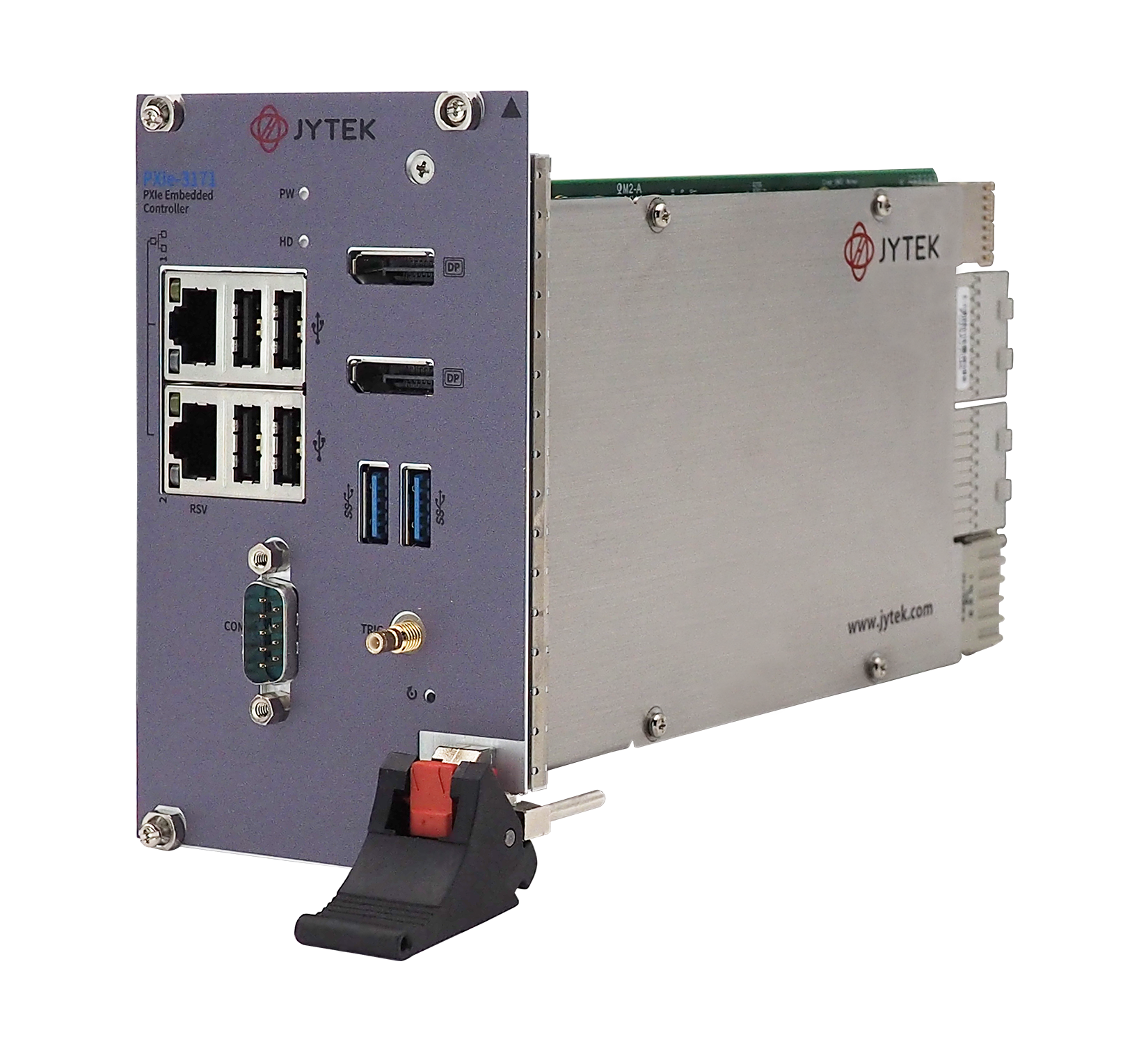

JYTEK PXIe-3171 PXI Express嵌入式控制器搭载高性能的兆芯KX-6640A处理器，专为基于PXI Express的测试系统而设计。这款坚固耐用的控制器能够提供高效的计算能力，非常适合各种测试和测量应用。凭借兆芯KX-6640A处理器（4核心，4线程，主频2.6 GHz）以及最高32 GB的双通道DDR4内存（2666 MT/s），PXIe-3171能够有效管理多个并发任务，在要求苛刻的多任务环境中确保可靠的性能表现。
PXIe-3171配备集成的PCI Express交换机，支持四个x4或两个x8的PXI Express配置，通过PCI Express 3.0总线可实现最高达8 GB/s的系统吞吐量。
PXIe-3171提供全面的接口灵活性，包括用于双显示器设置的双DisplayPort连接器、两个高速USB 3.2 Gen1端口（用于高效连接外设）、一个1 GbE以太网端口（用于可靠的网络通信）、四个USB 2.0端口、一个RS-232端口以及先进的触发I/O功能，用于精确的PXI触发。
PXIe-3171 (PN: JY6696412-01) | 3U Zhaoxin KX-6640A PXIe Gen3 Controller with 16GB memory & 1TB NVMe SSD, Windows 10 Enterprise LTSC 64-bit
Key Features
Zhaoxin KX-6640A processor (4 cores, 4 threads, 2.6 GHz)
Up to 32 GB dual-channel DDR4 memory at 2666 MT/s (non-ECC memory)
Maximum system throughput of 8 GB/s via PCI Express 3.0
Supports four links x4 or two links x8 PXI Express configurations
Integrated I/O
◇ 2 USB 3.2 Gen1 (5 Gbps)
◇ 4 USB 2.0
◇ 1 Ethernet port (1 GbE)
◇ 1 RS-232 port
◇ Trigger I/O for advanced PXI trigger functionality
Operting System
◇ Windows 10 Enterprise LTSC 64-bit
◇ Linux 64-bit
产品介绍
The JYTEK PXIe-3171 PXI Express embedded controller is powered by the high-performance Zhaoxin KX-6640A processor, specifically designed for PXI Express-based testing systems. This robust controller delivers efficient computing power, ideally suited for diverse testing and measurement applications. With the Zhaoxin KX-6640A processor (4 cores, 4 threads, running at 2.6 GHz) and up to 32 GB of dual-channel DDR4 memory at 2666 MT/s, the PXIe-3171 effectively manages multiple concurrent tasks, ensuring reliable performance in demanding multitasking environments.
Featuring an integrated PCI Express switch, the PXIe-3171 supports configurations of four links x4 or two links x8 PXI Express, achieving a maximum system throughput of up to 8 GB/s via the PCI Express 3.0 bus.
The PXIe-3171 offers comprehensive interface flexibility, including dual DisplayPort connectors for dual-monitor setups, two high-speed USB 3.2 Gen1 ports for efficient peripheral device connectivity, one 1 GbE Ethernet port for reliable network communications, four USB 2.0 ports, one RS-232 port, and advanced Trigger I/O capability for precision PXI triggering.
